THE ORIGINAL AND MOST MODERN SOLUTION IN PIPE AND SEWAGE DRILLING FOR HOUSE CONNECTIONS AND SURFACE WATER WITH GÖLZ KB 350 AND STIHL-2-STROKE-ENGINE
  • Max. Drill-Ø
    354 mm
  • Travel Length
    450 mm
  • Motor
    Gas, 2-stroke, 2,8 kW
  • RPM
    300 min-1
ltem number: 0295 353 2000
  • FEATURES

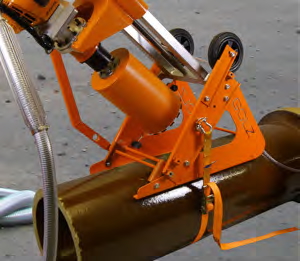

    45° drill in cast iron pipe. Fixing by strap, clamping ratchet and angle support (accessory)
    45° drill in cast iron pipe. Fixing by strap, clamping ratchet and angle support (accessory)
    90° drill in sewage pipe. Pipe base clamped between concrete pipe and trench and secured by ground spikes.
    90° drill in sewage pipe. Pipe base clamped between concrete pipe and trench and secured by ground spikes.

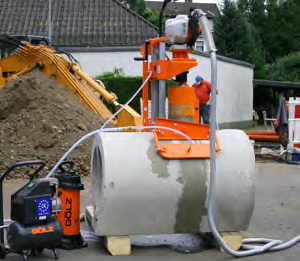

    90° drill in concrete pipe. Fixing by vacuum pads (accessory).
    90° drill in concrete pipe. Fixing by vacuum pads (accessory).

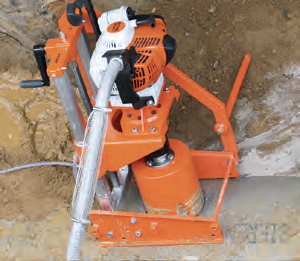

    90° drill in sewage pipe. Fixing by ground spikes.
    90° drill in sewage pipe. Fixing by ground spikes.
  • TECH DATA TABLE
    • Most advanced design
    • Top class components by magnesium highpressure
    die casting
    • compact and leightweight design, approved
    to operate under constricted space
    • Proven STIHL-Engine technology combined
    with GÖLZ Equipment concept esure
    highest reliabiltiy, efficiency and safety in
    operation
    • Independant operation- where no public
    power supply is available.

    Gölz KB 350 standard package

    • Drill stand, travel length 450 mm,Pipe base, self

    centering

    • Ground frame with 2 ground fixing spikes

    • Fastening strap 2,1 meter with clamping ratchet

    for fixing directly on sewage pipe

    • STIHL 2-stroke-engine, 2,8 kW (3,8 PS)

    • Exhaust gas hose, 4m

    • Gearbox with water swivel, 300 rpm

    • Drilling diameter: max ø 354 mm (14")

    • Drill bit connection: Gölz 3-bolt-flange

    • Pressurized 10 liter water tank

    • Total weight with Stihl engine: 45 kg (99 lbs)



      KB350  Drill bit connection Gölz 3-bolt-flange
      Complete with  Gasoline motor STIHL 2-stroke
      Power/Pressure  2,8
      RPM   300min-1
      Drilling Ø  Ø 110 - 354 mm (14")
      Order number   0295 353 2000


  • Diamond Tools
    Suitable diamond tools – our recommendations

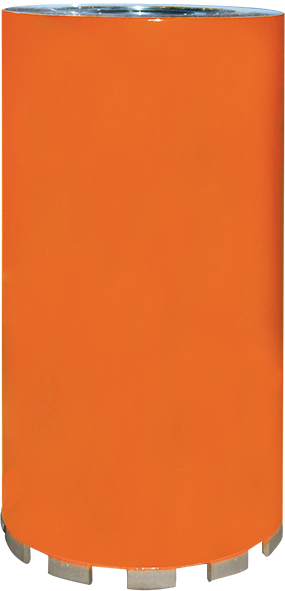

    D530 450 4---
    RM40

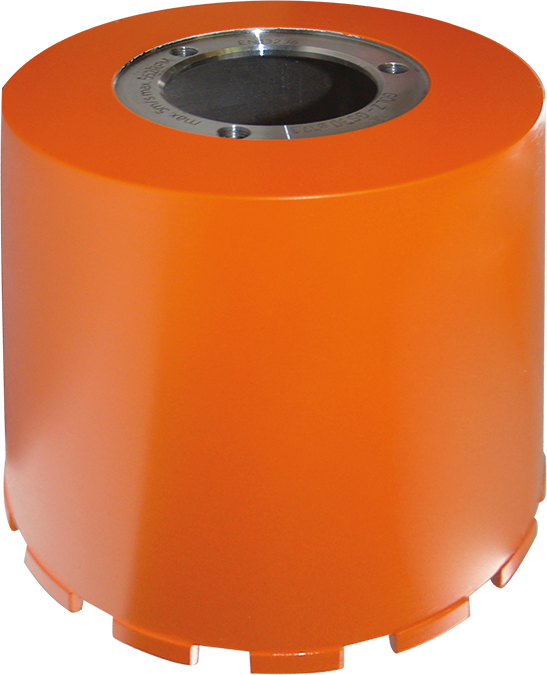

    D530 301 2---
    GS30
  • Videos
    See our products in action
